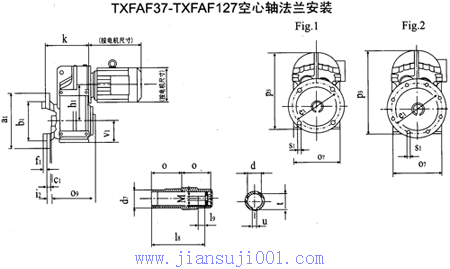

| TXFAF37-TXFAF127型平行軸斜齒輪減速電機外形及安裝尺寸
|
型號 |
Fig |
a1 |
b1 |
c1 |
e1 |
f1 |
h1 |
i2 |
k |
o |
o7 |
o9 |
p3 |
s1 |
v1 |
d |
d7 |
l8 |
l9 |
t |
u |
M |
|
TXFAF37 |
1 |
160 |
110 |
10 |
130 |
3.5 |
112 |
24 |
138 |
60 |
165 |
123 |
252 |
9 |
76 |
30 |
45 |
105 |
17 |
33.3 |
8 |
M10 |
|
TXFAF47 |
1 |
200 |
130 |
12 |
165 |
3.5 |
128.1 |
25 |
162 |
75 |
180 |
153 |
269 |
11 |
77 |
35 |
50 |
132 |
22 |
38.3 |
10 |
M10 |
|
TXFAF57 |
1 |
250 |
180 |
15 |
215 |
4 |
136 |
23.5 |
177 |
83 |
200 |
170 |
317 |
13.5 |
93 |
40 |
55 |
142 |
29 |
43.3 |
12 |
M16 |
|
TXFAF67 |
1 |
250 |
180 |
15 |
215 |
4 |
159.5 |
23 |
188 |
90 |
212 |
184 |
343 |
13.5 |
97 |
40 |
55 |
156 |
29 |
43.3 |
12 |
M16 |
|
TXFAF77 |
1 |
300 |
230 |
16 |
265 |
4 |
200 |
37 |
234 |
105 |
270 |
213 |
426 |
13.5 |
121 |
50 |
70 |
183 |
32 |
53.8 |
14 |
M16 |
|
TXFAF87 |
1 |
350 |
250 |
18 |
300 |
5 |
246.7 |
30 |
259 |
120 |
330 |
243 |
531 |
17.5 |
152 |
60 |
85 |
210 |
36 |
64.4 |
18 |
M20 |
|
TXFAF97 |
2 |
450 |
350 |
22 |
400 |
5 |
285 |
41.5 |
321 |
150 |
400 |
303 |
623 |
17.5 |
178 |
70 |
95 |
270 |
34 |
74.9 |
20 |
M20 |
|
TXFAF107 |
2 |
450 |
350 |
22 |
400 |
5 |
332.4 |
41 |
358 |
175 |
450 |
353 |
717 |
17.5 |
200 |
90 |
118 |
313 |
40 |
95.4 |
25 |
M24 |
|
TXFAF127 |
2 |
550 |
450 |
25 |
500 |
5 |
382.6 |
51 |
429 |
205 |
530 |
413 |
856 |
17.5 |
236 |
100 |
135 |
373 |
38 |
106.4 |
28 |
M24 |
*電機尺寸參見附頁，括號內尺寸為參考尺寸
|
