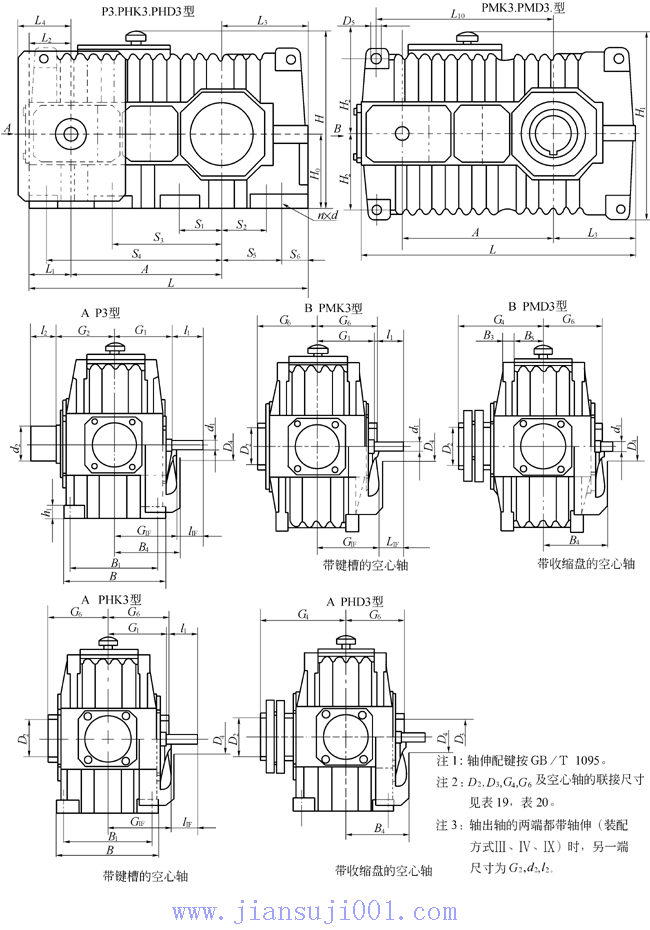

P3、PMK3、PMD3、PHK3、PHD3型減速器外形及安裝尺寸如圖3、表8所示。
表8 P3、PMK3、PMD3、PHD3型減速器外形及安裝尺寸
mm
規格 |
L |
B |
H |
H0 |
H1 |
A |
L1 |
L2 |
L3 |
輸入軸 |
輸出軸 |
風扇 |
d1 |
l1 |
G1 |
l1F |
G1F |
d2 |
l2 |
G2 |
D4 |
B4 |
L4 |
03 |
720 |
300 |
≈466 |
220 |
— |
415 |
90 |
95 |
215 |
40m6 |
110 |
195 |
82 |
223 |
100m6 |
210 |
180 |
130 |
240 |
140 |
04 |
825 |
320 |
≈530 |
250 |
≈530 |
475 |
90 |
95 |
260 |
40m6 |
110 |
195 |
82 |
223 |
110n6 |
210 |
195 |
130 |
240 |
140 |
05 |
910 |
320 |
≈620 |
290 |
≈610 |
515 |
90 |
95 |
300 |
40m6 |
110 |
195 |
82 |
223 |
130n6 |
250 |
195 |
130 |
240 |
140 |
06 |
985 |
410 |
≈620 |
290 |
≈610 |
570 |
115 |
125 |
300 |
65m6 |
140 |
255 |
105 |
290 |
140n6 |
250 |
245 |
200 |
295 |
200 |
07 |
1075 |
410 |
≈690 |
320 |
≈710 |
620 |
115 |
125 |
340 |
65m6 |
140 |
255 |
105 |
290 |
160n6 |
300 |
255 |
200 |
295 |
200 |
08 |
1230 |
430 |
≈800 |
380 |
≈810 |
715 |
115 |
125 |
400 |
65m6 |
140 |
255 |
105 |
290 |
180n6 |
300 |
260 |
200 |
295 |
200 |
09 |
1365 |
560 |
≈820 |
380 |
≈810 |
795 |
170 |
180 |
400 |
90m6 |
170 |
335 |
130 |
375 |
200n6 |
350 |
335 |
210 |
385 |
290 |
10 |
1545 |
590 |
≈940 |
440 |
≈965 |
910 |
170 |
180 |
465 |
90m6 |
170 |
335 |
130 |
375 |
220n6 |
350 |
360 |
210 |
385 |
290 |
11 |
1745 |
590 |
≈1120 |
520 |
≈1130 |
1010 |
170 |
180 |
562 |
90m6 |
170 |
335 |
130 |
375 |
240n6 |
410 |
360 |
210 |
385 |
290 |
12 |
1910 |
750 |
≈1120 |
520 |
≈1130 |
1110 |
240 |
255 |
560 |
100m6 |
210 |
440 |
165 |
485 |
260n6 |
410 |
440 |
250 |
500 |
310 |
13 |
2000 |
750 |
≈1160 |
550 |
≈1150 |
1160 |
240 |
255 |
600 |
100m6 |
210 |
440 |
165 |
485 |
280n6 |
410 |
440 |
250 |
500 |
310 |
14 |
2155 |
770 |
≈1230 |
580 |
≈1220 |
1275 |
240 |
255 |
640 |
100m6 |
210 |
440 |
165 |
485 |
300n6 |
470 |
470 |
250 |
500 |
310 |
15 |
2250 |
770 |
≈1310 |
620 |
≈1340 |
1325 |
240 |
255 |
687 |
100m6 |
210 |
440 |
165 |
485 |
300n6 |
470 |
470 |
250 |
500 |
310 |
16 |
2410 |
770 |
≈1460 |
700 |
≈1480 |
1400 |
240 |
255 |
770 |
100m6 |
210 |
440 |
165 |
485 |
320n6 |
470 |
470 |
250 |
500 |
310 |
17 |
2490 |
1040 |
≈1430 |
700 |
≈1420 |
1480 |
340 |
355 |
670 |
150n6 |
250 |
560 |
200 |
610 |
320n6 |
470 |
590 |
310 |
630 |
410 |
18 |
2600 |
1040 |
≈1480 |
700 |
≈1480 |
1535 |
340 |
355 |
725 |
150n6 |
250 |
560 |
200 |
610 |
340n6 |
550 |
590 |
310 |
630 |
410 |
19 |
2740 |
1040 |
≈1570 |
760 |
≈1540 |
1600 |
340 |
355 |
800 |
150n6 |
250 |
560 |
200 |
610 |
360n6 |
550 |
590 |
310 |
630 |
410 |
20 |
2790 |
1110 |
≈1570 |
760 |
≈1540 |
1650 |
340 |
355 |
800 |
150n6 |
250 |
590 |
200 |
640 |
380n6 |
550 |
625 |
310 |
660 |
410 |
21 |
2920 |
1110 |
≈1700 |
820 |
≈1680 |
1710 |
340 |
355 |
870 |
150n6 |
250 |
590 |
200 |
640 |
400n6 |
650 |
625 |
310 |
660 |
410 |
22 |
3040 |
1110 |
≈1780 |
820 |
≈1760 |
1770 |
340 |
355 |
930 |
150n6 |
250 |
590 |
200 |
640 |
400n6 |
650 |
625 |
310 |
660 |
410 |
表 8 (續)
規格 |
地腳螺栓 |
支承孔 |
質量 kg |
油量 L |
n×d |
B1 |
S1 |
S2 |
S3 |
S4 |
S5 |
S6 |
h1 |
H2 |
L10 |
D5
(H9) |
B3 |
B5 |
P2,PH2 |
PM2 |
P2,PH2 |
PM2 |
03 |
6×M20 |
250 |
105 |
— |
— |
480 |
185 |
30 |
32 |
— |
— |
— |
— |
— |
≈300 |
— |
≈17 |
— |
04 |
6×M24 |
260 |
140 |
— |
— |
525 |
220 |
40 |
40 |
205 |
520 |
28 |
40 |
80 |
≈450 |
≈430 |
≈28 |
≈22 |
05 |
6×M24 |
260 |
160 |
— |
— |
570 |
260 |
40 |
40 |
240 |
565 |
28 |
40 |
80 |
≈565 |
≈545 |
≈33 |
≈26 |
06 |
8×M24 |
350 |
145 |
145 |
— |
645 |
260 |
40 |
50 |
220 |
630 |
36 |
50 |
110 |
≈790 |
≈755 |
≈40 |
≈32 |
07 |
8×M24 |
350 |
190 |
190 |
— |
695 |
300 |
40 |
50 |
280 |
680 |
36 |
50 |
110 |
≈900 |
≈850 |
≈44 |
≈34 |
08 |
8×M30 |
360 |
215 |
215 |
— |
785 |
355 |
45 |
60 |
320 |
770 |
40 |
60 |
110 |
≈1340 |
≈1260 |
≈78 |
≈60 |
09 |
8×M36 |
470 |
210 |
210 |
— |
915 |
350 |
50 |
70 |
320 |
890 |
50 |
70 |
150 |
≈1900 |
≈1790 |
≈130 |
≈110 |
10 |
8×M42 |
490 |
240 |
240 |
— |
1020 |
405 |
60 |
80 |
370 |
980 |
60 |
80 |
150 |
≈2760 |
≈2630 |
≈185 |
≈155 |
11 |
8×M42 |
490 |
310 |
310 |
— |
1121 |
500 |
62 |
80 |
450 |
1075 |
60 |
80 |
150 |
≈3400 |
≈3230 |
≈200 |
≈165 |
12 |
10×M42 |
650 |
300 |
300 |
700 |
1290 |
500 |
60 |
90 |
430 |
1250 |
65 |
90 |
220 |
≈4800 |
≈4600 |
≈250 |
≈220 |
13 |
10×M42 |
650 |
320 |
320 |
750 |
1340 |
540 |
60 |
90 |
460 |
1300 |
65 |
90 |
220 |
≈5380 |
≈5120 |
≈260 |
≈230 |
14 |
10×M48 |
660 |
330 |
330 |
860 |
1445 |
570 |
70 |
90 |
500 |
1400 |
70 |
100 |
240 |
≈6200 |
≈5920 |
≈310 |
≈290 |
15 |
10×M48 |
660 |
350 |
350 |
910 |
1490 |
615 |
73 |
100 |
550 |
1440 |
70 |
100 |
240 |
≈6690 |
≈6330 |
≈330 |
≈310 |
16 |
10×M48 |
660 |
400 |
400 |
990 |
1570 |
700 |
70 |
100 |
630 |
1510 |
70 |
100 |
240 |
≈7330 |
≈6990 |
≈360 |
≈335 |
17 |
8×M56 |
900 |
250 |
— |
935 |
1655 |
505 |
165 |
120 |
490 |
1695 |
80 |
120 |
275 |
≈9500 |
≈9000 |
≈400 |
≈370 |
18 |
8×M56 |
900 |
250 |
— |
950 |
1700 |
550 |
175 |
120 |
540 |
1745 |
80 |
120 |
275 |
≈11000 |
≈10400 |
≈450 |
≈420 |
19 |
8×M56 |
900 |
370 |
— |
970 |
1770 |
630 |
170 |
120 |
600 |
1805 |
80 |
120 |
275 |
≈12500 |
≈11800 |
≈480 |
≈450 |
20 |
8×M64 |
960 |
370 |
— |
995 |
1795 |
605 |
195 |
140 |
580 |
1835 |
90 |
140 |
300 |
≈13400 |
≈12700 |
≈580 |
≈540 |
21 |
10×M64 |
960 |
410 |
410 |
1130 |
1850 |
670 |
200 |
140 |
640 |
1895 |
90 |
140 |
300 |
≈14200 |
≈13500 |
≈630 |
≈590 |
22 |
10×M64 |
960 |
470 |
470 |
1190 |
1910 |
730 |
200 |
140 |
700 |
1955 |
90 |
140 |
300 |
≈15200 |
≈14400 |
≈650 |
≈610 |
|
